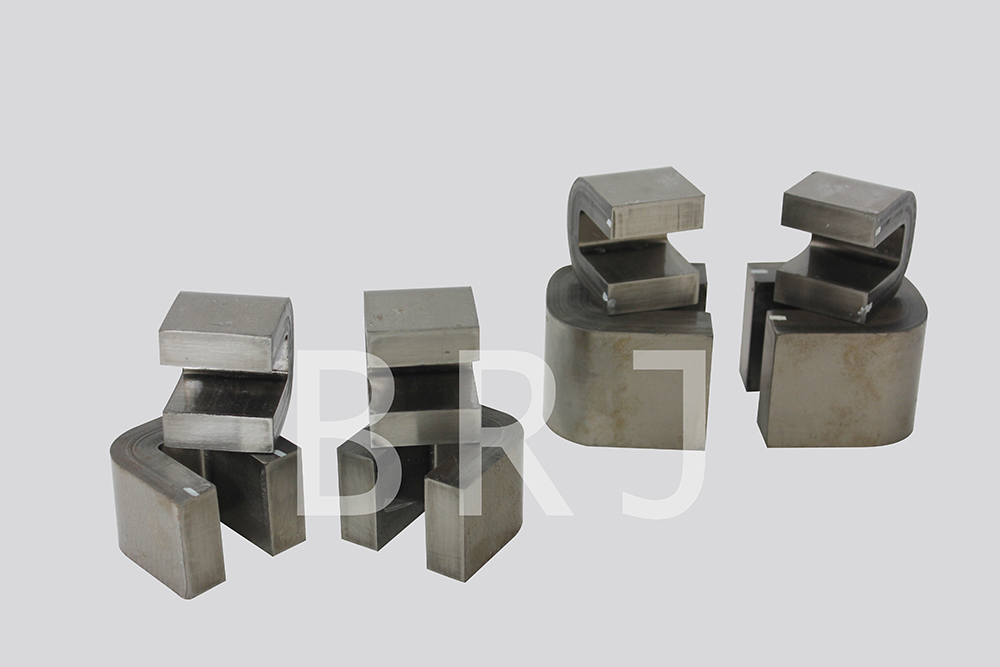

Amorphous C-Cores

2020-09-08 08:11:07
second
Amorphous C-Cores
Detailed introduction:



Features:

High saturation induction-----reducing core volume;

Rectangular form-----convenient to mount coils;

With air gap----excellent anti-bias current ability;

 Low core loss

 Good temperature stability (-55~130℃);

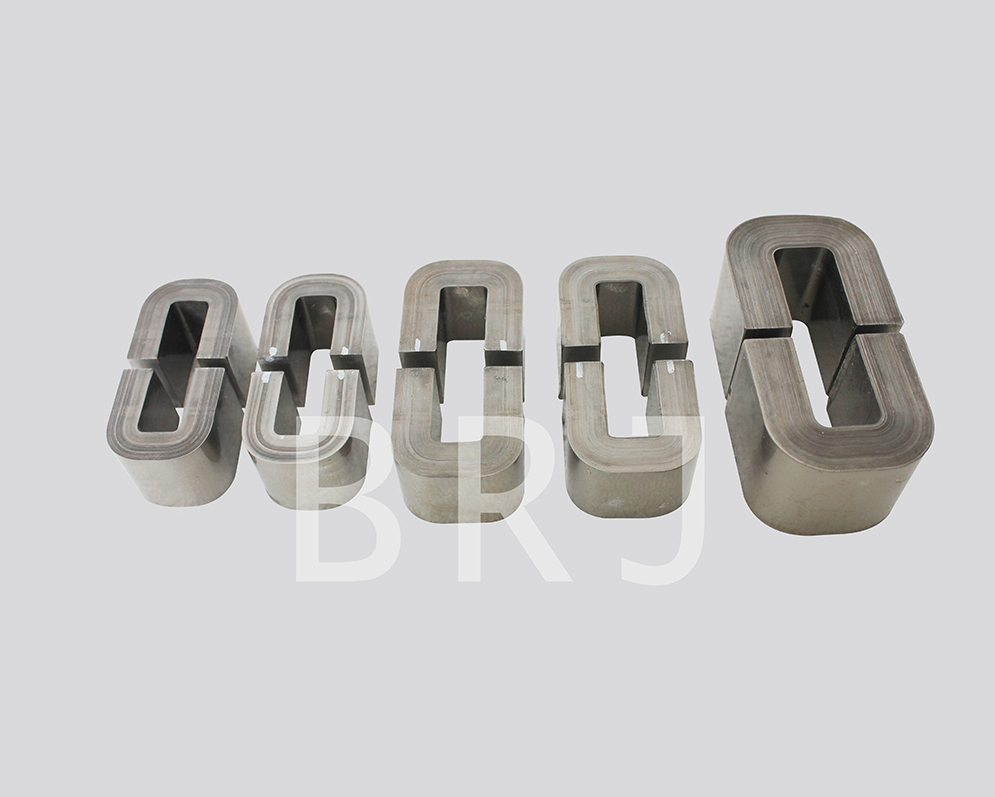

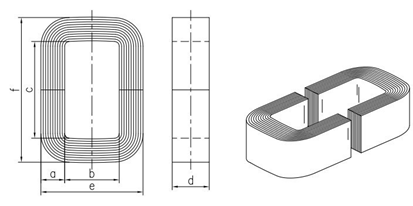

Specifications:


BRJ---Kuanshan Boerjing  CFC---Amorphous C Core  Le---Magnetic Path Length   Ac---Effective sectional area

Wa---Window Area

Type No.

a(mm)

b(mm)

c(mm)

d(mm)

e(mm)

f(mm)

Ac(cm²)

Wa(cm²)

BRJCFC

9.0

10.0

33.0

15.0

28.0

50.8

1.1

3.3

BRJCFC

10.0

11.0

34.0

20.0

31.0

54.0

1.7

3.6

BRJCFC

10.7

13.0

32.0

20.0

35.0

53.0

1.8

3.9

BRJCFC

11.0

14.0

42.0

20.0

35.0

63.5

1.9

5.2

BRJCFC

11.0

14.0

42.0

25.0

35.0

63.5

2.3

5.2

BRJCFC

11.0

14.0

52.0

25.0

35.0

73.0

2.3

6.5

BRJCFC

11.0

14.0

52.0

30.0

35.0

73.0

2.8

6.5

BRJCFC

13.0

16.0

57.0

25.0

41.0

82.5

2.8

8.4

BRJCFC

13.0

16.0

57.0

30.0

41.0

82.5

3.3

8.4

BRJCFC

13.0

16.0

57.0

35.0

41.0

82.5

3.9

8.4

BRJCFC

15.0

22.0

74.0

25.0

53.0

104.0

3.2

14.0

BRJCFC

15.0

22.0

74.0

30.0

53.0

104.0

3.8

14.0

BRJCFC

15.0

22.0

74.0

40.0

53.0

104.0

5.1

14.0

BRJCFC

15.0

22.0

70.0

45.0

53.0

104.0

5.7

14.0

BRJCFC

20.4

30.0

154.0

20.0

70.5

195.0

3.5

45.8

BRJCFC

18.0

25.0

84.0

35.0

62.0

122.0

5.4

20.8

BRJCFC

18.0

25.0

84.0

40.0

62.0

122.0

6.1

20.8

BRJCFC

18.5

25.0

84.5

50.0

63.0

122.0

7.9

20.8

BRJCFC

25.8

67.0

97.8

25.0

117.0

149.0

5.5

63.8

BRJCFC

19.5

25.0

90.0

60.0

63.0

128.0

9.9

22.5

BRJCFC

21.5

35.5

85.0

50.0

79.0

129.0

9.1

29.8

BRJCFC

21.5

35.0

85.0

65.0

79.0

129.0

11.9

29.8

BRJCFC

24.5

40.0

85.0

55.0

90.0

135.0

11.5

34.0

BRJCFC

24.5

40.0

85.0

70.0

90.0

135.0

14.6

34.0

BRJCFC

24.5

40.0

85.0

85.0

90.0

135.0

17.7

34.0

BRJCFC

29.5

40.0

95.0

85.0

100.0

155.0

21.3

38.0

BRJCFC

32.5

40.0

105.0

85.0

106.0

171.0

23.5

42.0



 Note: Other specifications can be customized according to customer requirements.



Application:

                Output filter or inductor cores in high frequency large power supplies;

                 Transformer cores in middle and high frequency switch mode power supplies;
